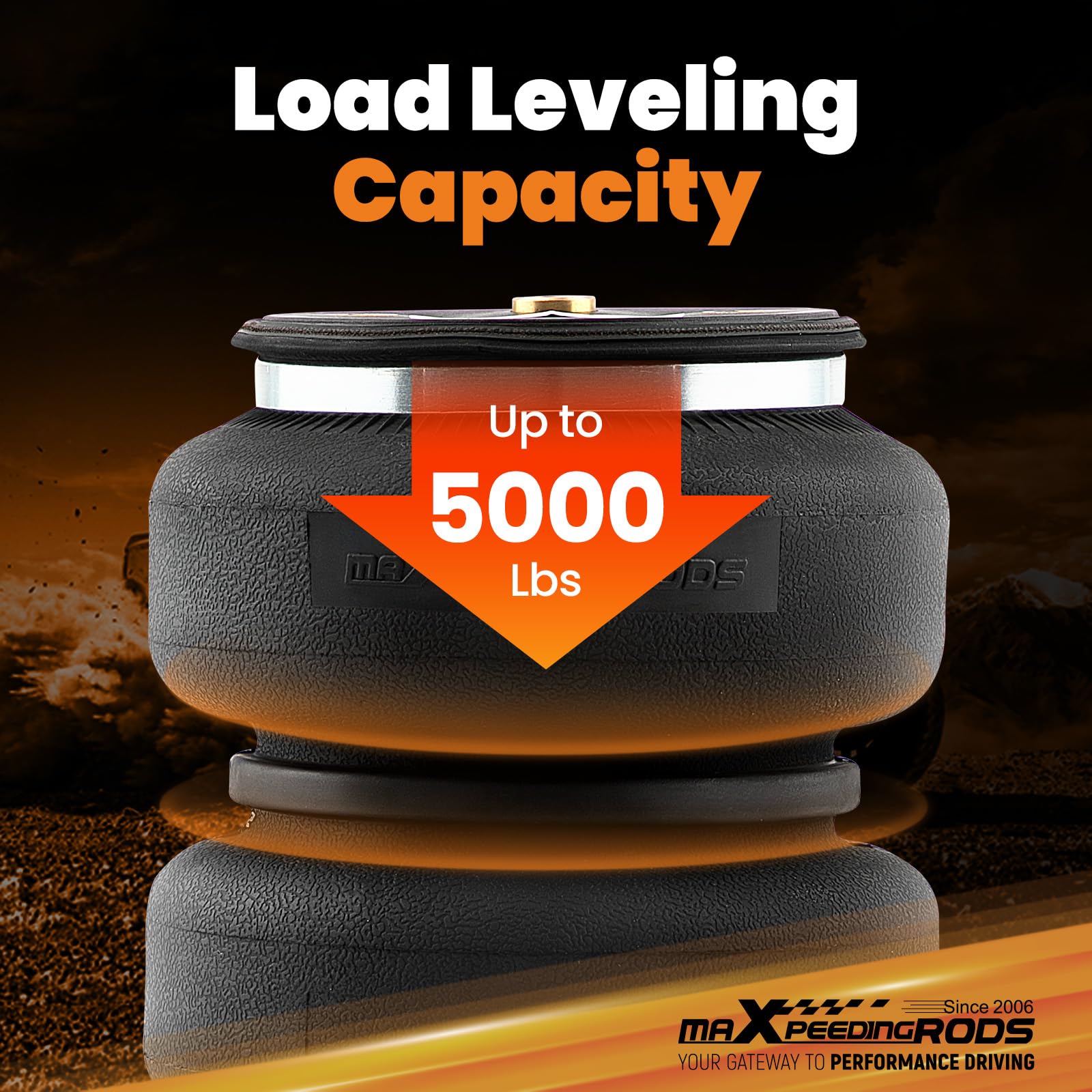

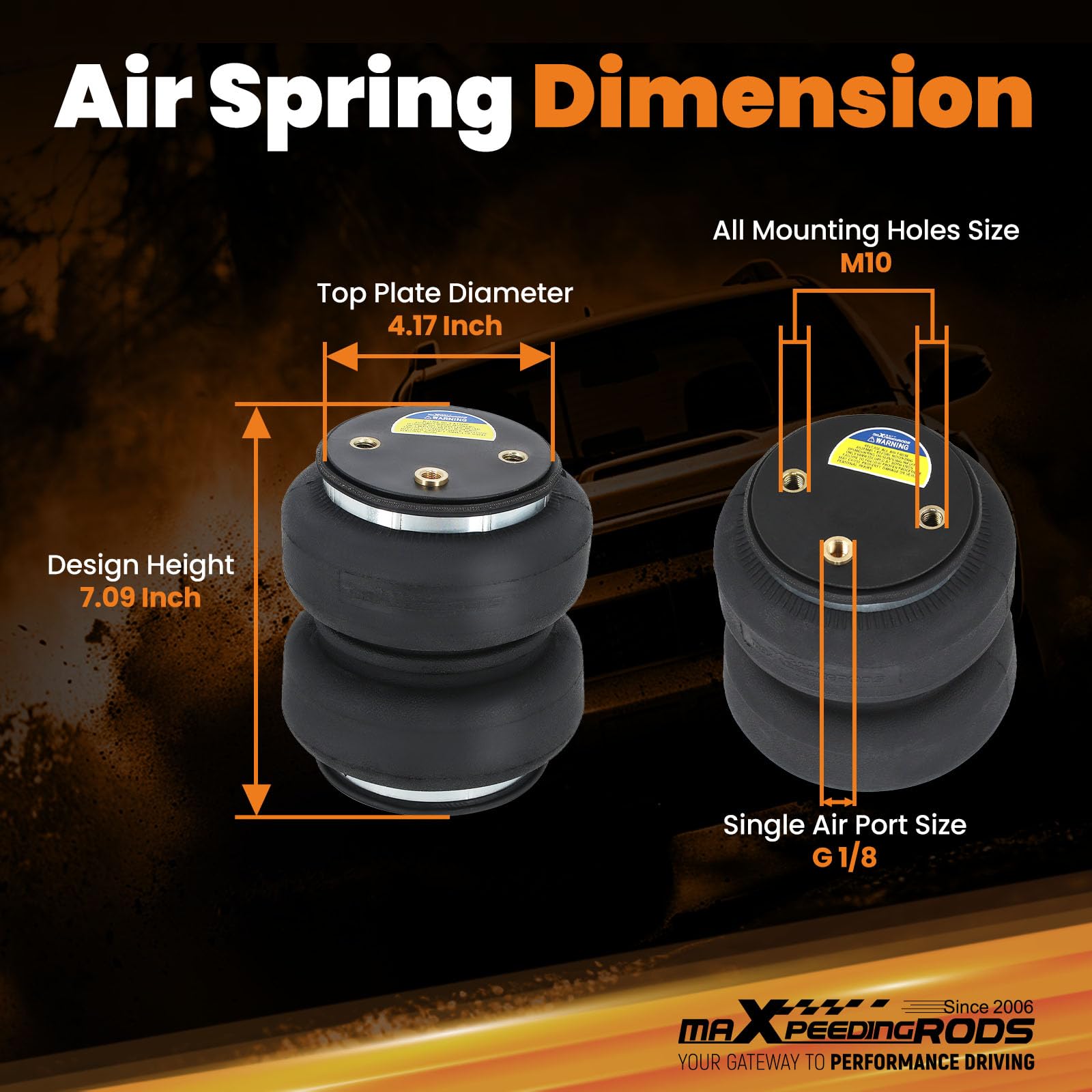

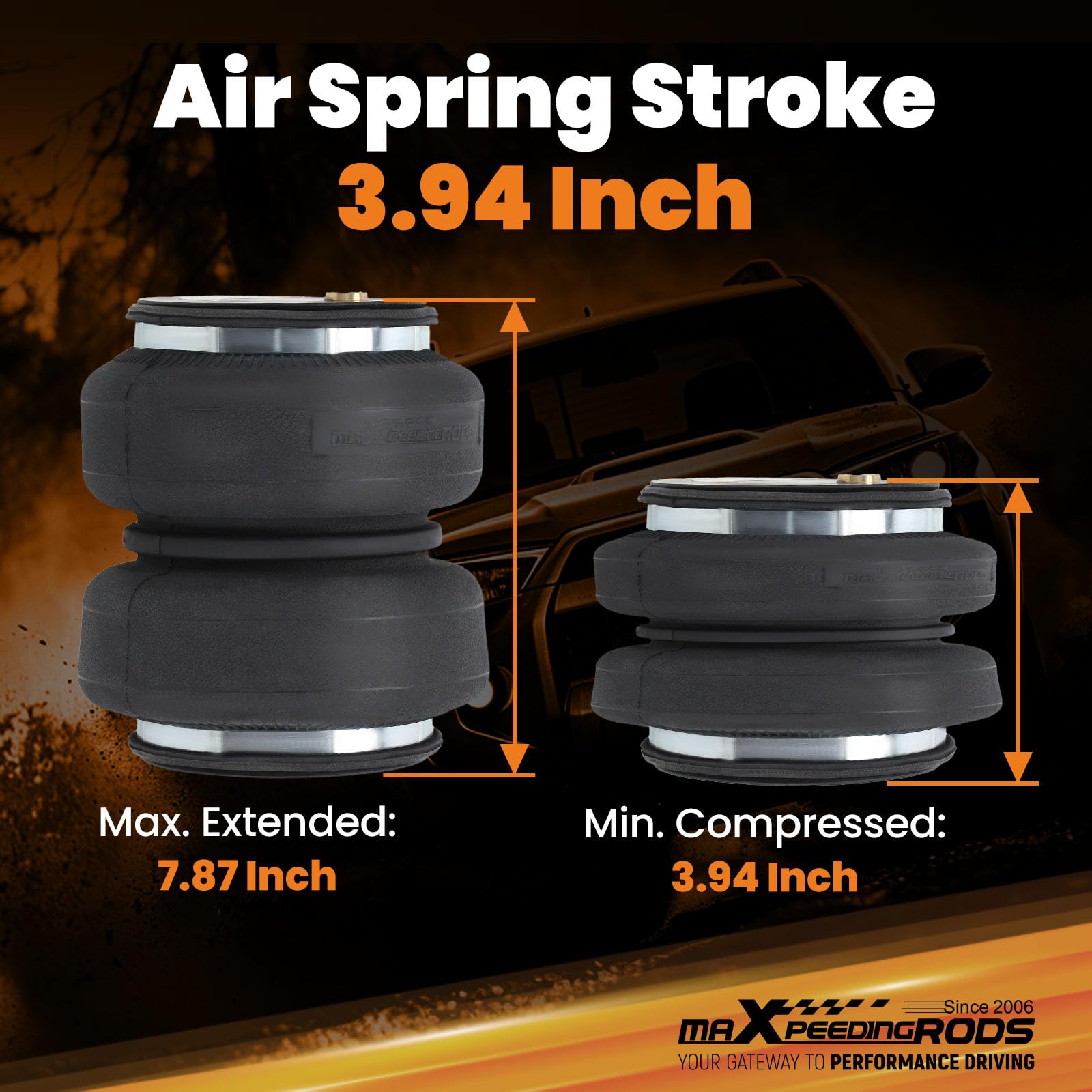

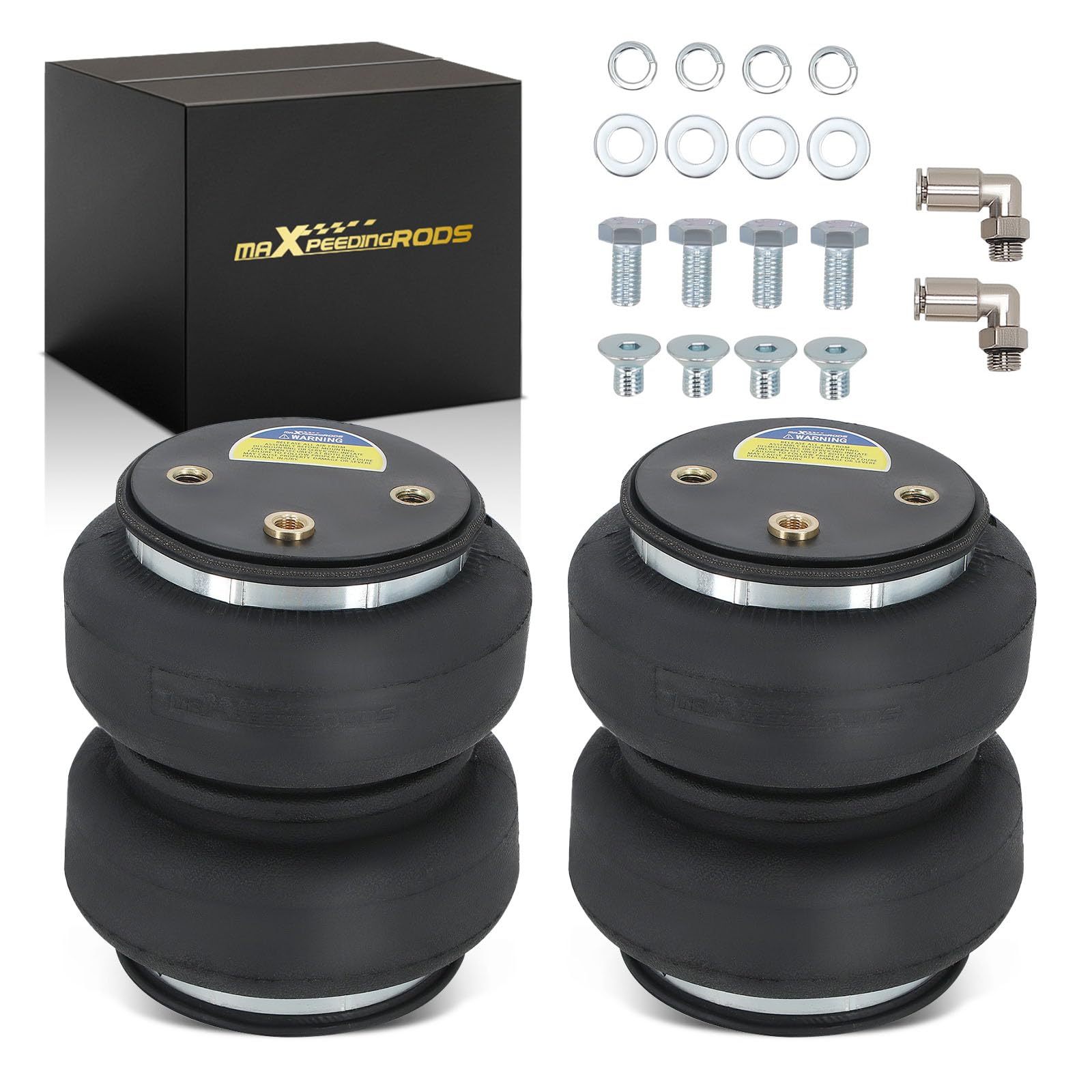

Specifications Max. extended height 200 mm Min. Compressed height 100 mm Woking Stroke 100 mm Top plate diameter 106 mm Air spring bag body diameter 145 mm Design height 180 mm Single air port size G 1/8" Install hole size 2*M10 Air fitting connector size G 1/8" - φ6 mm (male) (Included) Load capacity Up to 5000 lbs (2500 lbs per one) Internal jounce bumper Included Condition Brand New Quantity 2 pieces in one set (bags only, no brackets) Previous page Next page Choose the Suitable Air Helper Bags for Your Truck Double Bellow Air Springs Add to Cart Double Bellow Air Springs Add to Cart Double Bellow Air Springs Add to Cart Double Bellow Air Springs Buying Options Triple Bellow Air Springs Add to Cart Load Capacity 2500 lbs per one 2500 lbs per one 2600 lbs per one 2600 lbs per one 2600 lbs per one Air Port Size G 1/8 1/2 NPT 1/2-14 NPT 1/2-14 NPT G 1/2 Mounting Holes Size M10 3/8-16 UNC 3/8-16 UNC 3/8-16 UNC 3/8-16 UNC Bottom Mounting Hole Qty. 2 1 3 3 3 Max.Extended 7.87 inches 6.89 inches 12.5 inches 12.5 inches 10.24 inches Min. Compressed 3.94 inches 2.56 inches 2.8 inches 2.8 inches 4.33 inches Stroke 3.94 inches 4.33 inches 9.72 inches 9.72 inches 5.9 inches Air Fittings Included ✔ ✔ ✘ ✔ ✘ Air Line Included ✘ ✘ ✘ ✔ ✘
